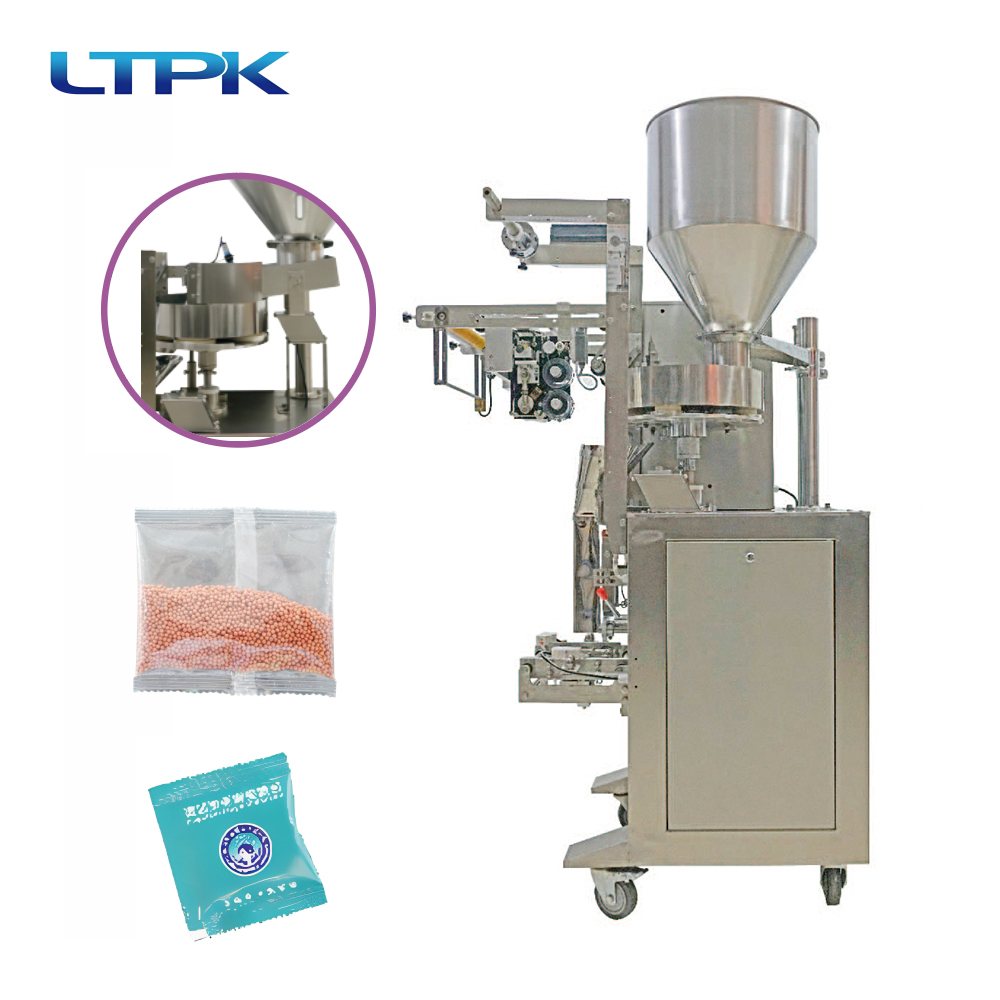

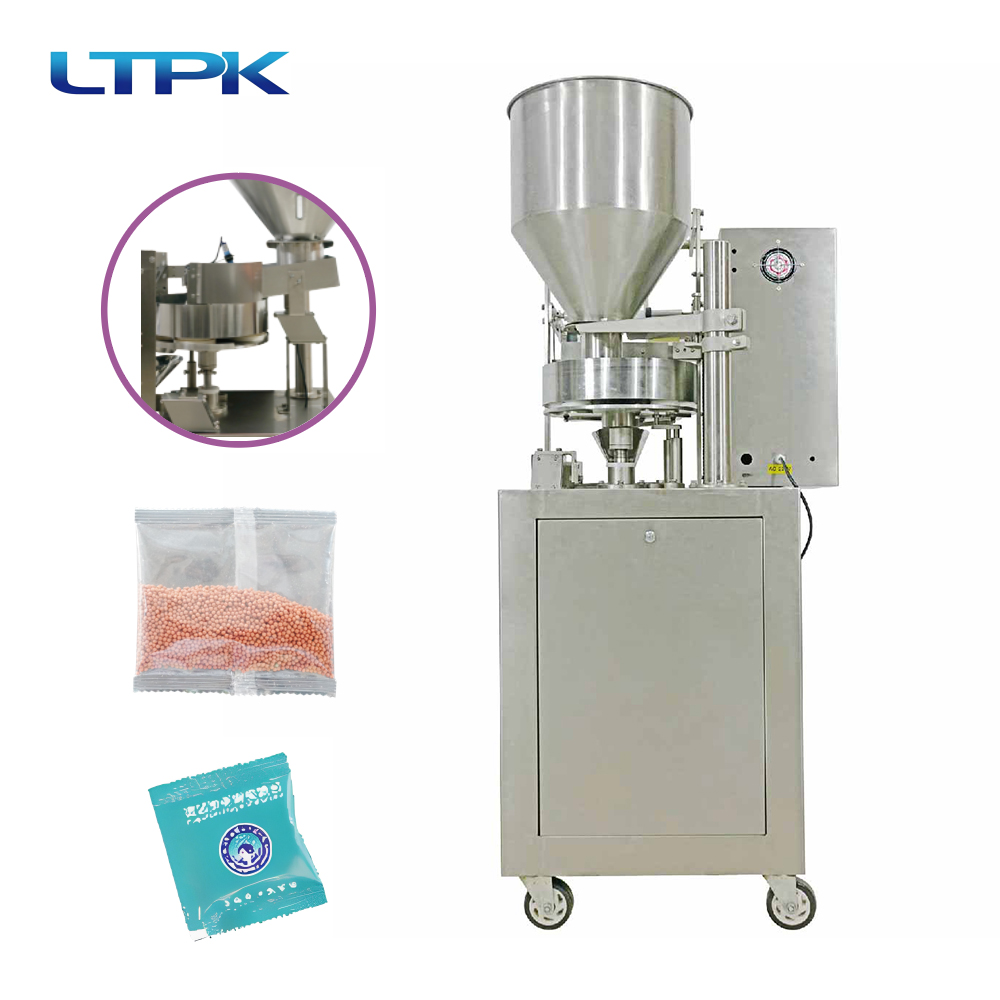

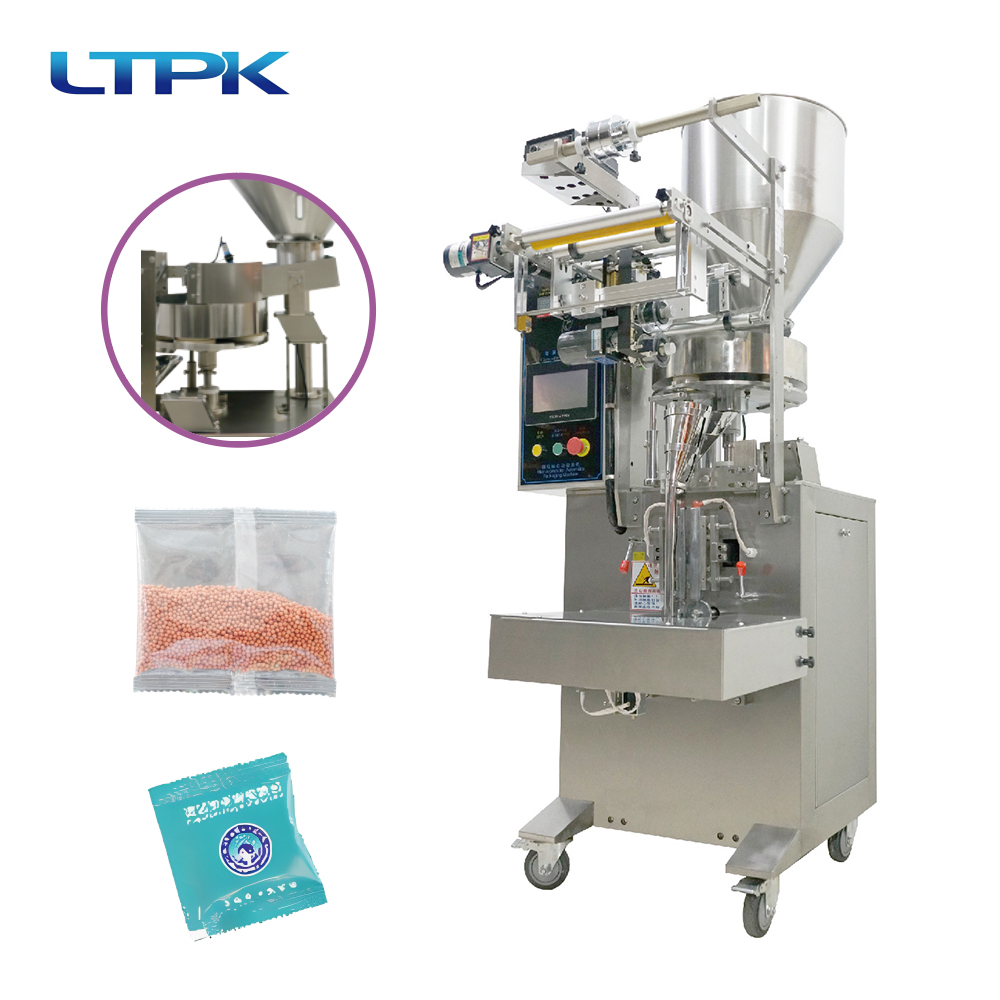

YP-61 Granule packing machine
YP-61
1、The machine is suitable for the food, medicine, chemical industry, cosmetics industry of particles of measurement packing.
2、All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
3、The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
4、Packaging materials：composite film.
Characteristic
1、The machine is suitable for the food, medicine, chemical industry, cosmetics industry of particles of measurement packing.
2、All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
3、The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
4、Packaging materials：composite film.

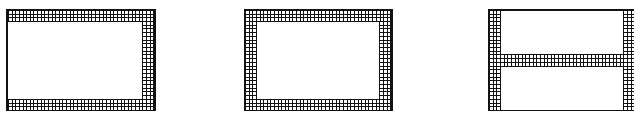

Sealing Type
Three sides Sealing/ Four sides Sealing/ Back sealing
Technical Parameters
| Measuring Scope | 1 - 100 g（3 - 100 ml） |
| Bag Size (L*W) | 30 - 170 mm |
| 30 - 130 mm | |
| Packing Speed | 30 - 60 bags/min |
| Dimension (L*W*H) | 735 * 1022 * 1808 mm |
| Weight | 400 kg |
| Total Power | 220V / 50Hz / 1.4kw |
