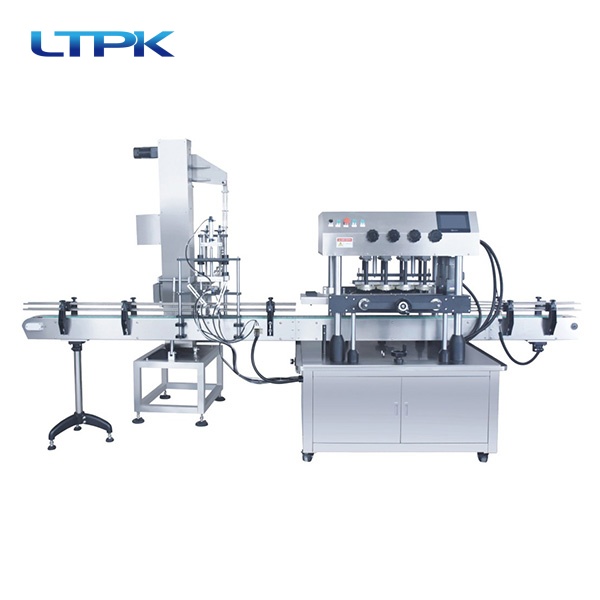

8 Rounds Online-Continuous Twist Capping Machine
1、This machine has high degree of automation as it integrates auto arranging,puting up and screwing cap.
2、Capping torauce can be set according to requirements.
3、With a small number of parts replacing like mould, auto capping can be suitable for different sizes of bottles.
4、There are inverted rotation and a pre-rotation function for putting up caps to ensure accurate capping and high capping pass rate.
5、The shell,frame,main structure,etc.of the machine are mainly made from 340# stainless steel so it is with beautiful appearance.
6、For this machine PLC with man-machine interface(touching screen)control was adopted,and for the main elecrical and pneumatic componets we choose domestic well-known brands to ensure stable performance.
Performance and Features:
1、This machine has high degree of automation as it integrates auto arranging,puting up and screwing cap.
2、Capping torauce can be set according to requirements.
3、With a small number of parts replacing like mould, auto capping can be suitable for different sizes of bottles.
4、There are inverted rotation and a pre-rotation function for putting up caps to ensure accurate capping and high capping pass rate.
5、The shell,frame,main structure,etc.of the machine are mainly made from 340# stainless steel so it is with beautiful appearance.
6、For this machine PLC with man-machine interface(touching screen)control was adopted,and for the main elecrical and pneumatic componets we choose domestic well-known brands to ensure stable performance.
Technical parameters:
| Speed | 20-100pcs/min |
| Cap's diameter | Φ15-Φ60mm |
| Bottle's diameter | Φ35-Φ140mm |
| Bottle's height | 38-250mm |
| Power | 1.5kw |
| Net weight | 2000x850x1800mm |
| Weight | 550kg |
