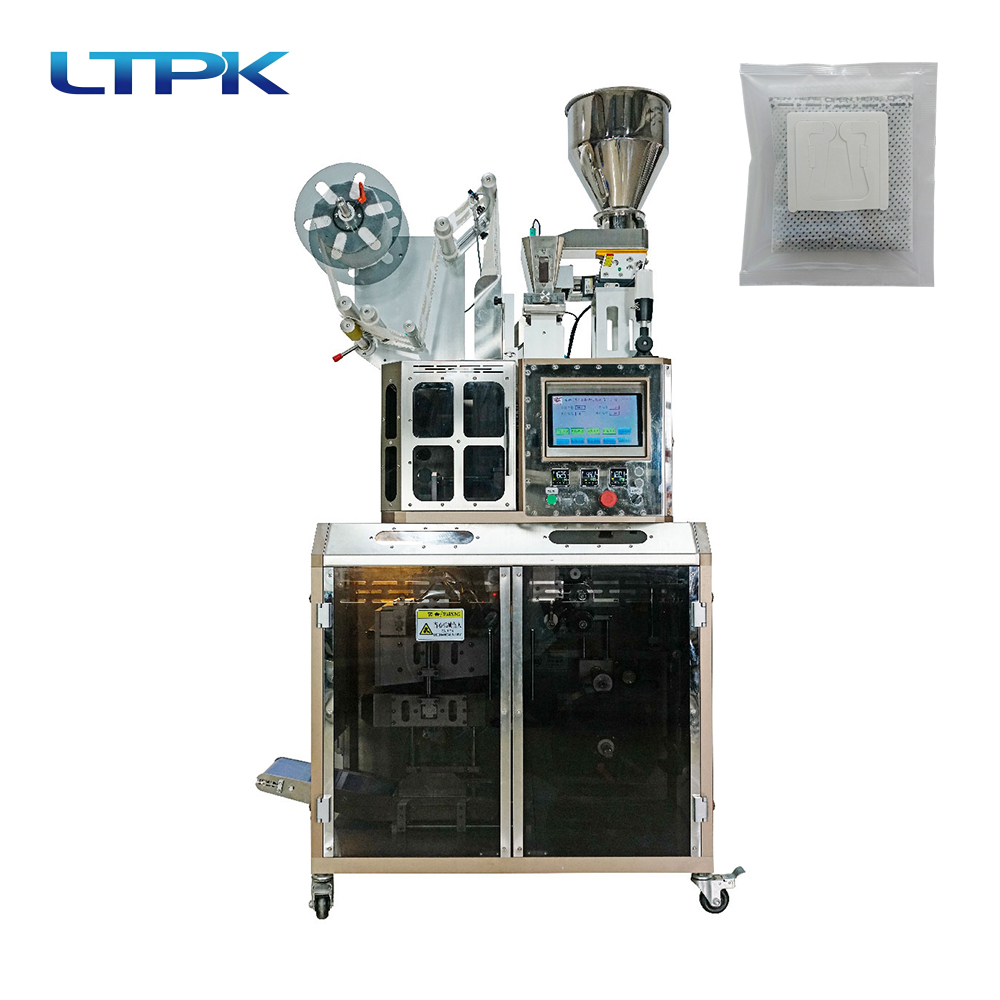

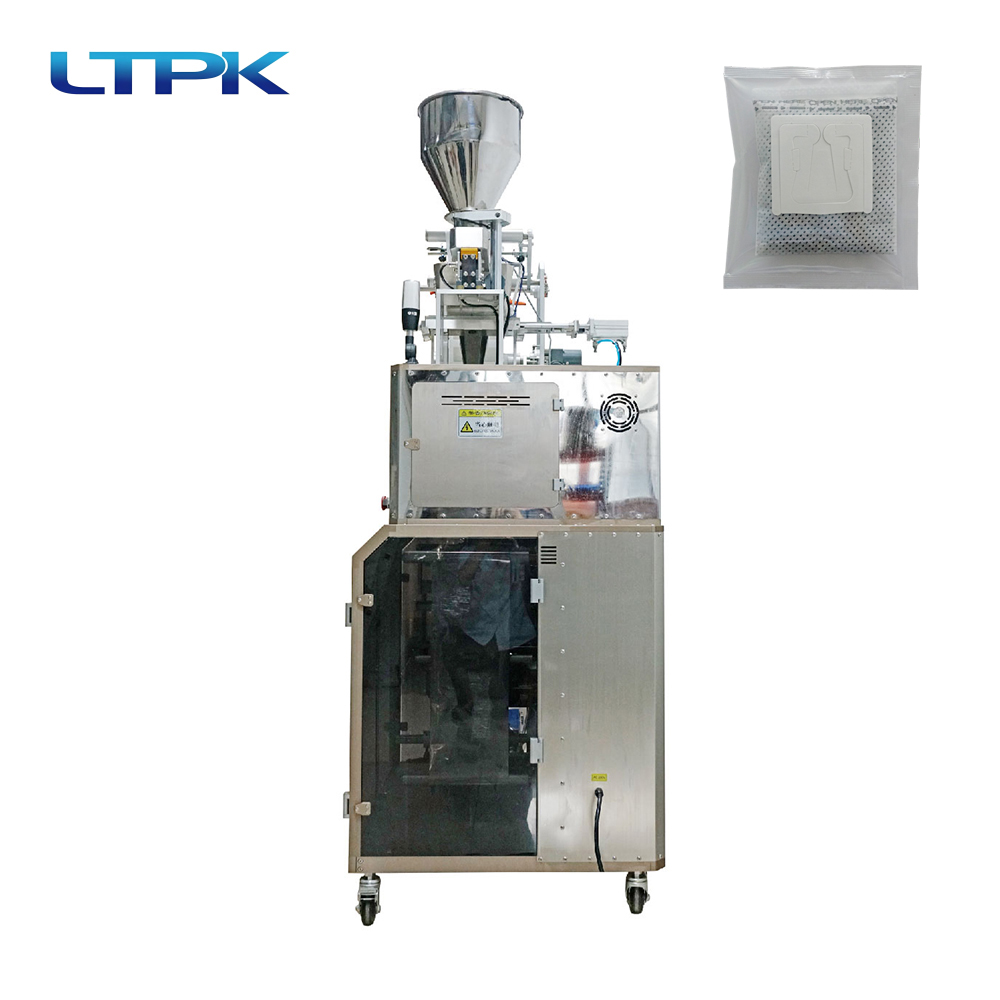

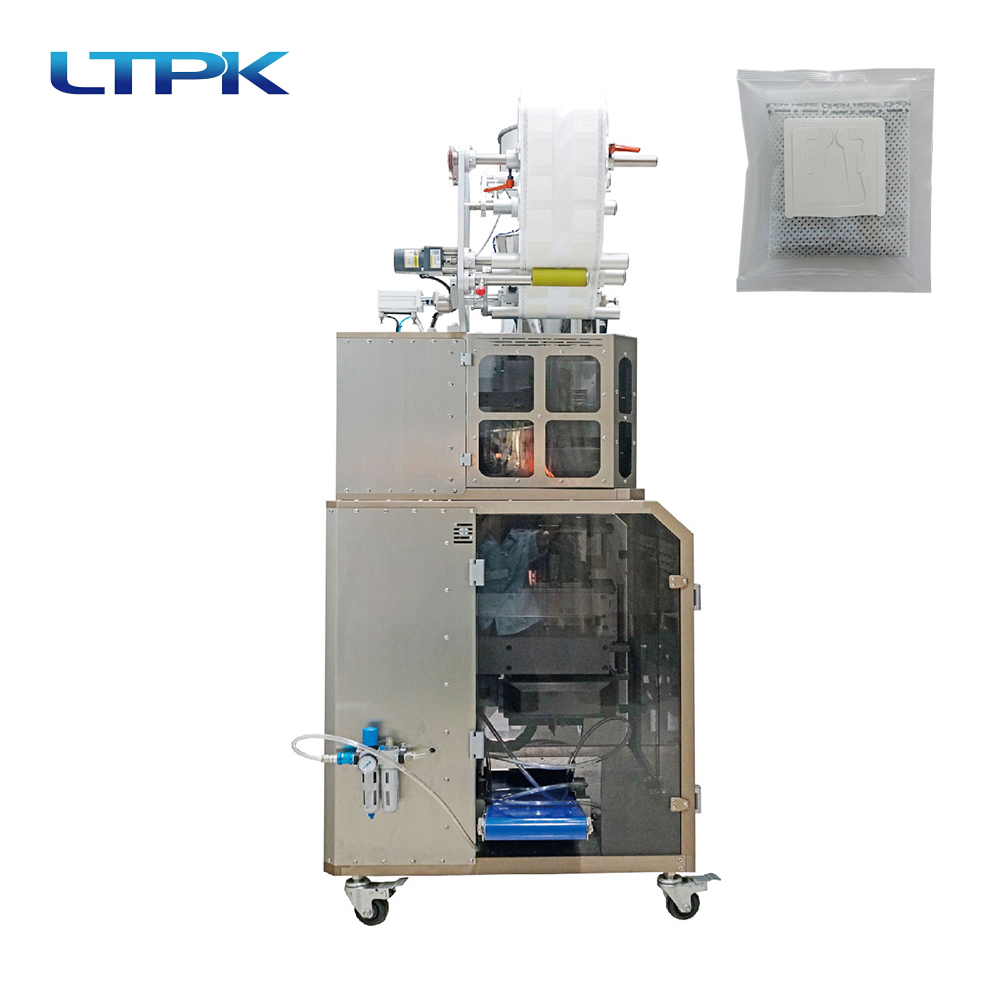

YS-188X Drip coffee bag (inner & outer) packing machine
1、 The machine is suitable for ground coffee and small particulate material.
2、Adopt the special drip filter bag with three-sides sealing, which can be directly hung against the cup edge to have a better brewing effect, moreover, the neat bag shape is a high fashion in the overseas markets.
3、The machine integrates automatic function, such as bag making, measuring, filling, sealing cutting, counting, batch number printing and other functions.
4、The drip inner bag made of non-woven fabric, guarantees covenient and hygienic brewing. The sealing adopts the advanced ultrasonic sealing, perfect sealing and beautiful bag type.
5、Packing material：filter paper, composite membrane, nylon, corn fiber(Food grade)，drip fitter bag.
Characteristic
1、 The machine is suitable for ground coffee and small particulate material.
2、Adopt the special drip filter bag with three-sides sealing, which can be directly hung against the cup edge to have a better brewing effect, moreover, the neat bag shape is a high fashion in the overseas markets.
3、The machine integrates automatic function, such as bag making, measuring, filling, sealing cutting, counting, batch number printing and other functions.
4、The drip inner bag made of non-woven fabric, guarantees covenient and hygienic brewing. The sealing adopts the advanced ultrasonic sealing, perfect sealing and beautiful bag type.
5、Packing material：filter paper, composite membrane, nylon, corn fiber(Food grade)，drip fitter bag.
Sealing Type
Three sides sealing
Technical Parameters
| Measuring Scope | 1 - 15 g |
| Inner bag size | ( L ) ：70-75 mm |
| ( W ) ：90-100 mm | |
| Outer bag size | ( L ) ：120 mm |
| ( W ) ：100 mm | |
| Packing Speed | 30-60 bags/min |
| Dimension (L*W*H) | 1203 * 809 * 2141 mm |
| Weight | 660 kg |
| Total Power | AC220V / 50Hz / 3.7kw |
| Gas source | ≥0.6m³/ min |
