YS-60II02-06 New Ver Tea packing machine(Electronic scale)
YS-60II02-06
1、The machine is suitable for food,medicine,chemical products of granule,short strip,flake solid type such as: puffed food,shrimp,peanut,opcorn,oatmeal melon seeds,sugar and various material.
2、All the works of bag making,measuring,filling,sealing,cutting,and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
3、The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.
4、Packaging materials：composite film.
Characteristic
1、The machine is suitable for food,medicine,chemical products of granule,short strip,flake solid type such as: puffed food,shrimp,peanut,opcorn,oatmeal melon seeds,sugar and various material.
2、All the works of bag making,measuring,filling,sealing,cutting,and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
3、The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.
4、Packaging materials：composite film.

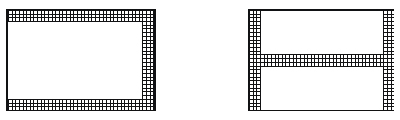

Sealing Type
Three sides sealing/back sealing
Technical Parameters
| Measuring Scope | 1- 100g |
| Bag Size(L*W) | 30 - 170 mm |
| 30 - 130 mm | |
| Packing Speed | 20 - 80 bags/min |
| Dimension (L*W*H) | 1284*1387*2099 mm |
| Weight | 250 kg |
| Total Power | 220V/ 50Hz /1.5kw |
| Gas source | ≥ 0.6Mpa |
