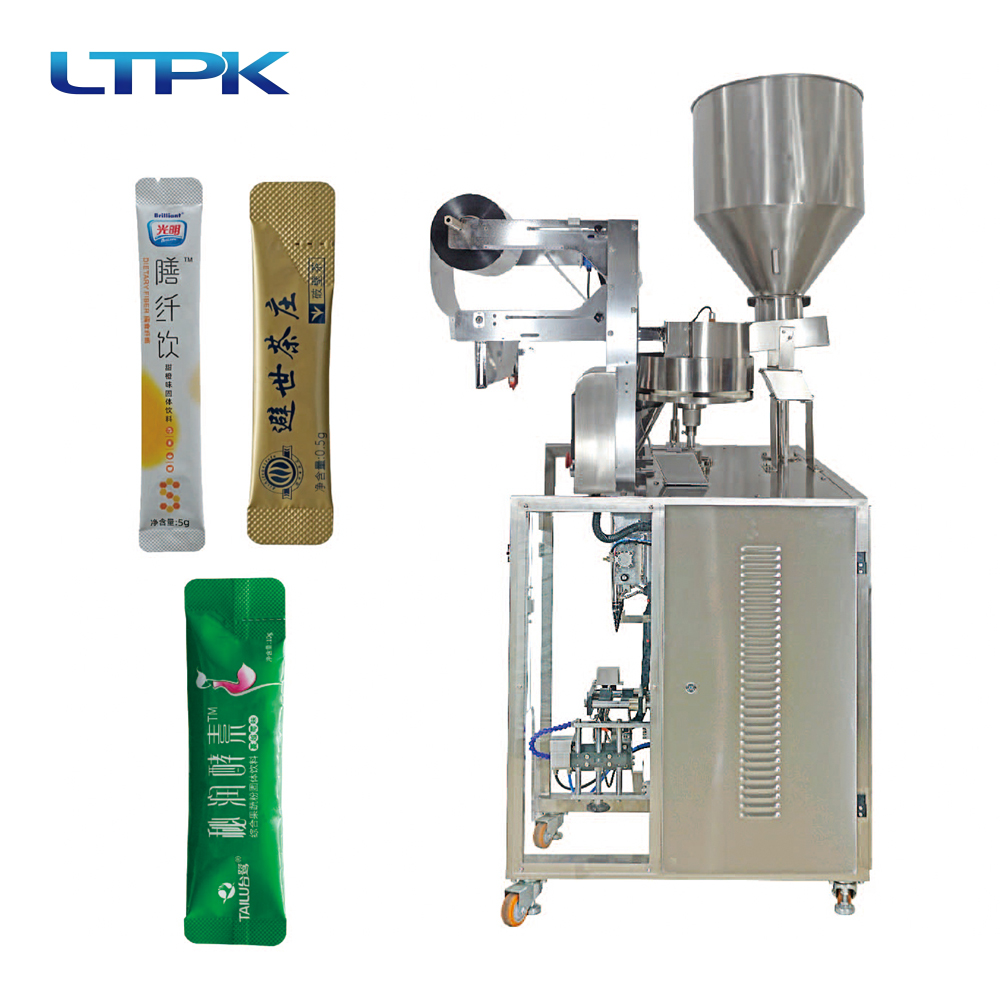

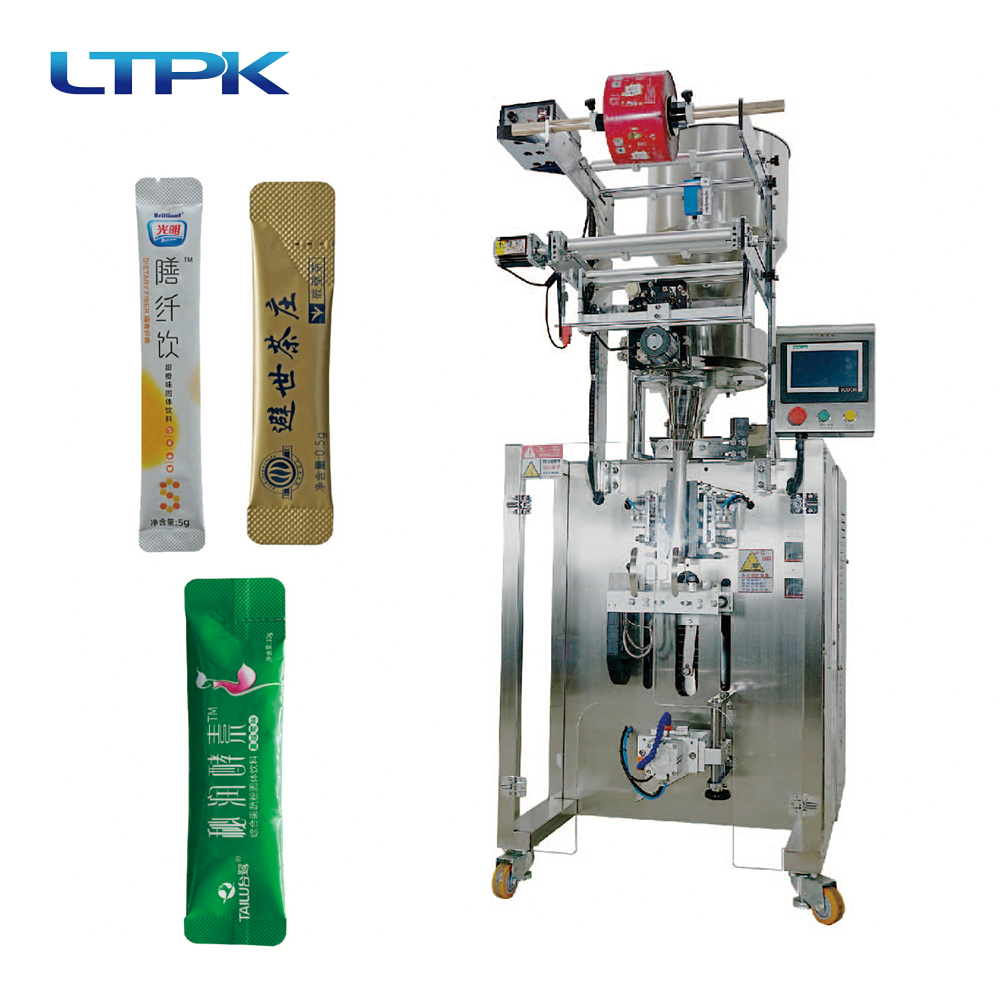

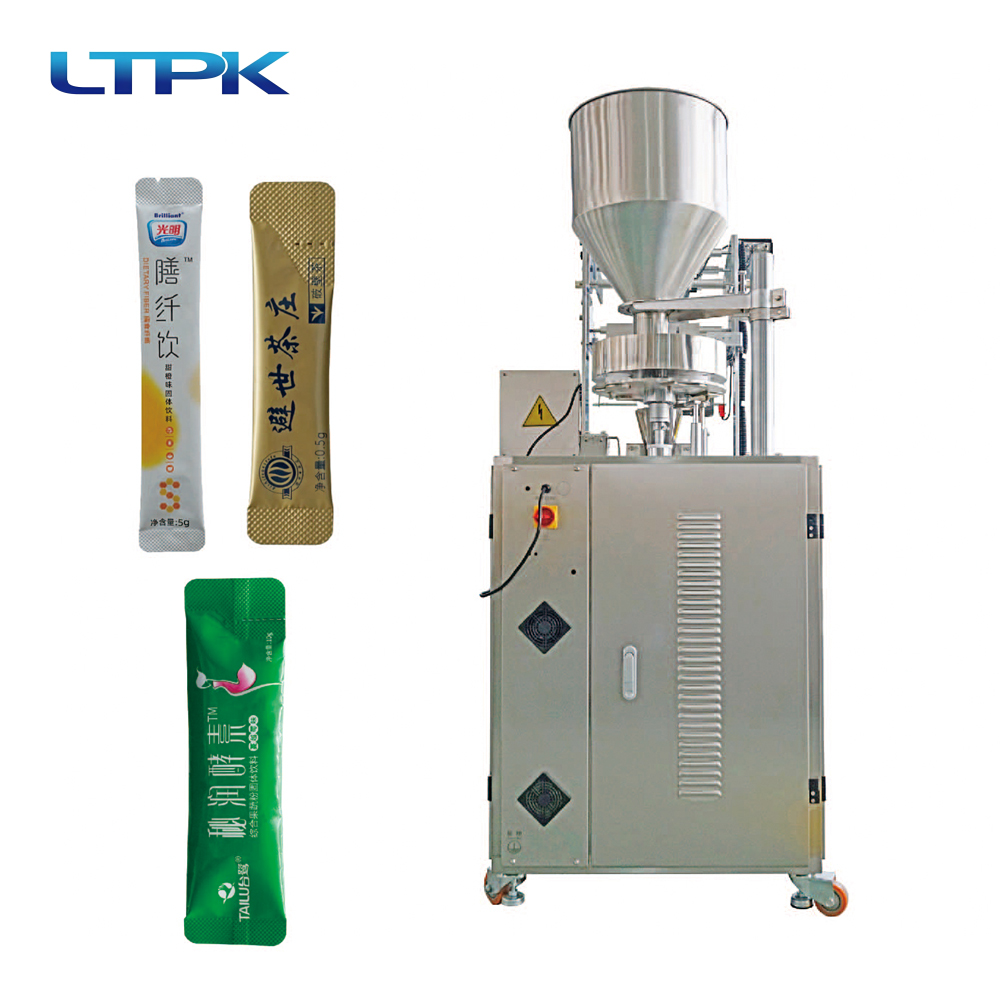

YS-65JLK-Y Rounded Particle Packaging Machine
YS-65JLK-Y
Electrical configuration: servo motor/touch screen/PLC/temperature controller/solid-state relay/intermediate relay/24V switch power supply/48V switch power supply/air switch/button/film pulling motor/film feeding motor/proximity switch/color code sensor/cylinder
Application: Suitable for measuring and packaging granular items, such as Chinese medicine granules, cat and dog food, coffee, enzymes, etc.
Function: It can automatically complete cutting, bag making, measuring, filling, sealing, slitting, counting, and can be configured with coding function according to needs. Adopting touch screen operation PLC control, driving stepper motor to control bag length, stable performance, easy adjustment, and accurate detection.
Intelligent temperature controller with PID regulation ensures that the temperature error range is controlled within 1 ℃.
Applicable industries: Suitable for industries such as food, medicine, chemical, cosmetics, etc.
Automation level: fully automated.
Characteristic
Electrical configuration: servo motor/touch screen/PLC/temperature controller/solid-state relay/intermediate relay/24V switch power supply/48V switch power supply/air switch/button/film pulling motor/film feeding motor/proximity switch/color code sensor/cylinder
Application: Suitable for measuring and packaging granular items, such as Chinese medicine granules, cat and dog food, coffee, enzymes, etc.
Function: It can automatically complete cutting, bag making, measuring, filling, sealing, slitting, counting, and can be configured with coding function according to needs. Adopting touch screen operation PLC control, driving stepper motor to control bag length, stable performance, easy adjustment, and accurate detection.
Intelligent temperature controller with PID regulation ensures that the temperature error range is controlled within 1 ℃.
Applicable industries: Suitable for industries such as food, medicine, chemical, cosmetics, etc.
Automation level: fully automated.
Warranty period: One year warranty, lifetime maintenance.
Core selling points: More than 20 years of packaging experience, beautiful rounded bag shape, stable performance, and favorable price.

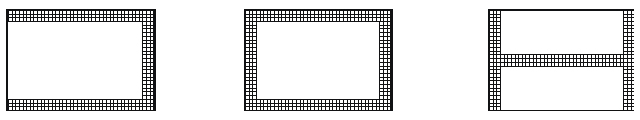

Sealing Type
Three sides Sealing/ Four sides Sealing/ Back sealing
Technical Parameters
| model | YS-65JLK-Y |
| Packing Speed | 30-60 bags/min |
| Weight | 1-20g |
| Measurement type | volume measurement |
| Film type | PP, PE, PS, EVA, PET, PVDC+PVC, OPP+ composite CPP etc |
| quantitative | Volume measuring cup |
| Bag Size (L*W) | L:30-180mm/W:20-75mm |
| Filling System | Measuring cup feeding |
| sealed method | heat sealing |
| compressed air | 0.8Mpa |
| Total Power | AC220V/ 50Hz /1.5kw |
| Dimension (L*W*H) | 850*1100*1900mm |
| Weight | 300kg |
