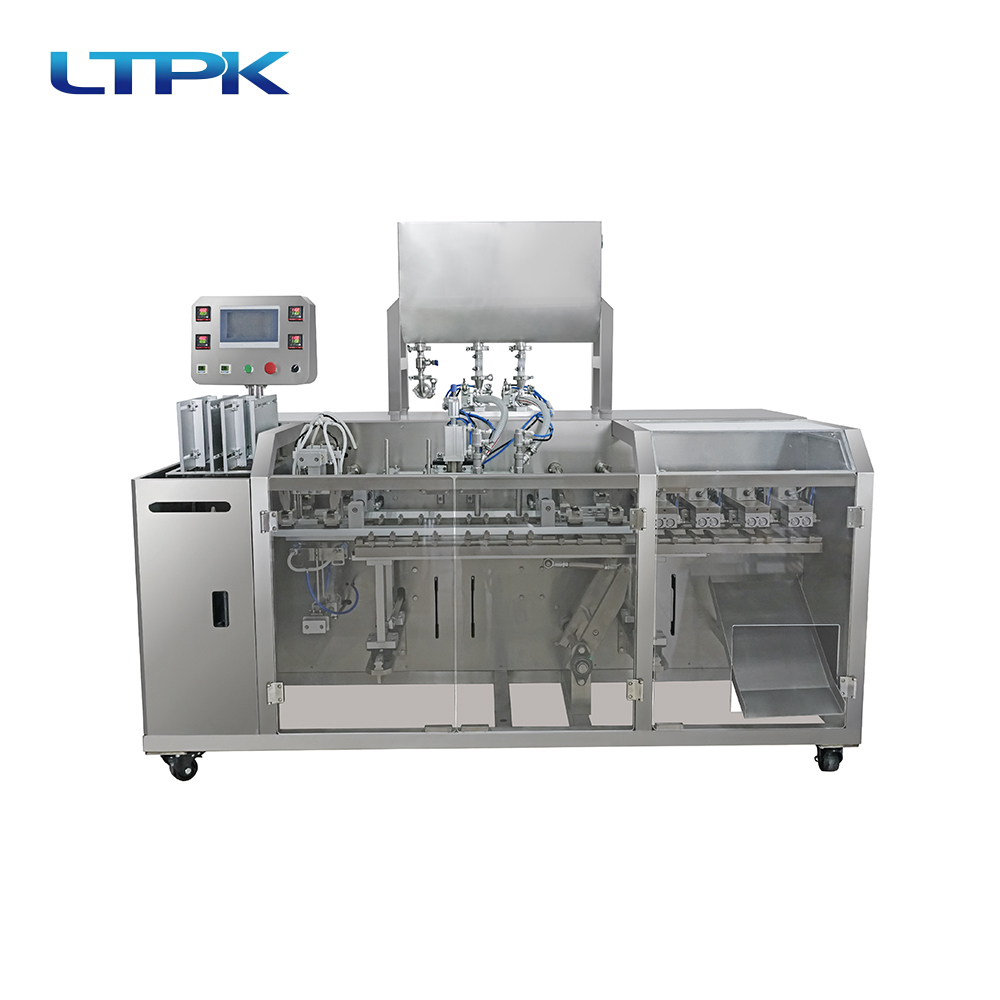

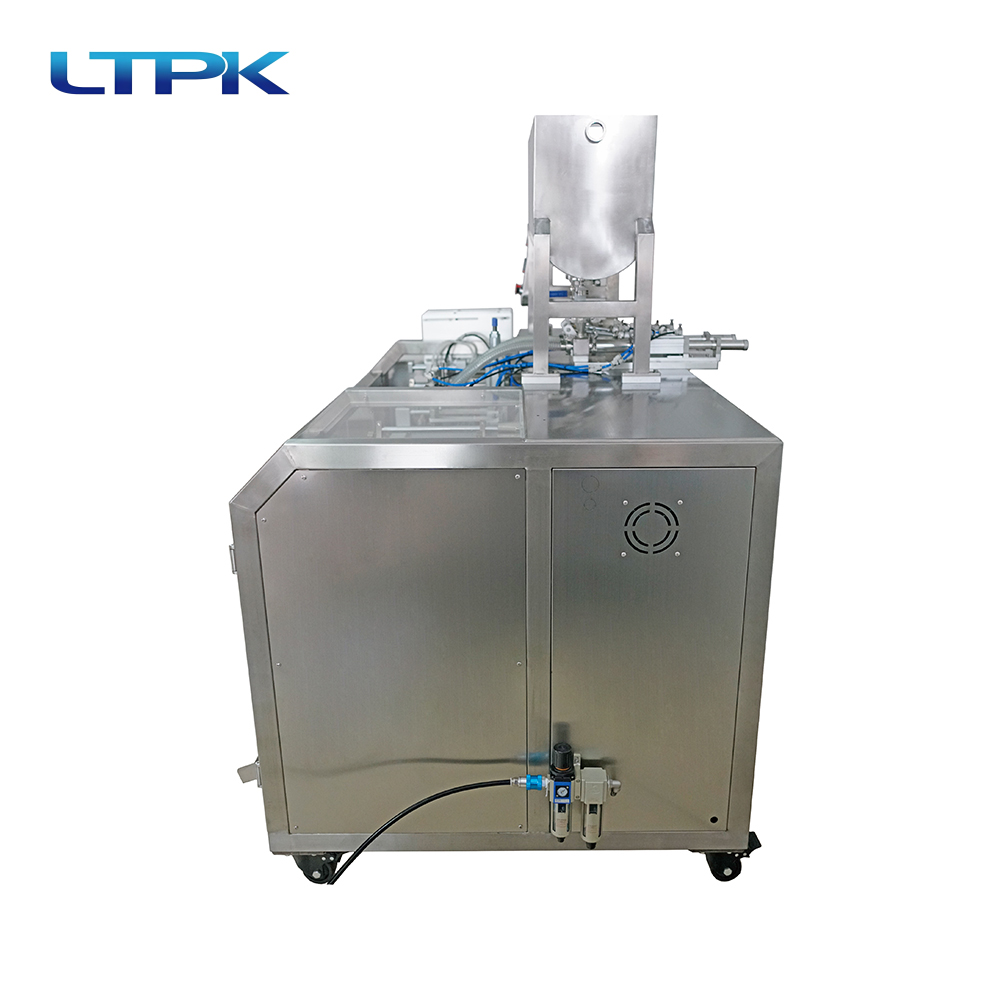

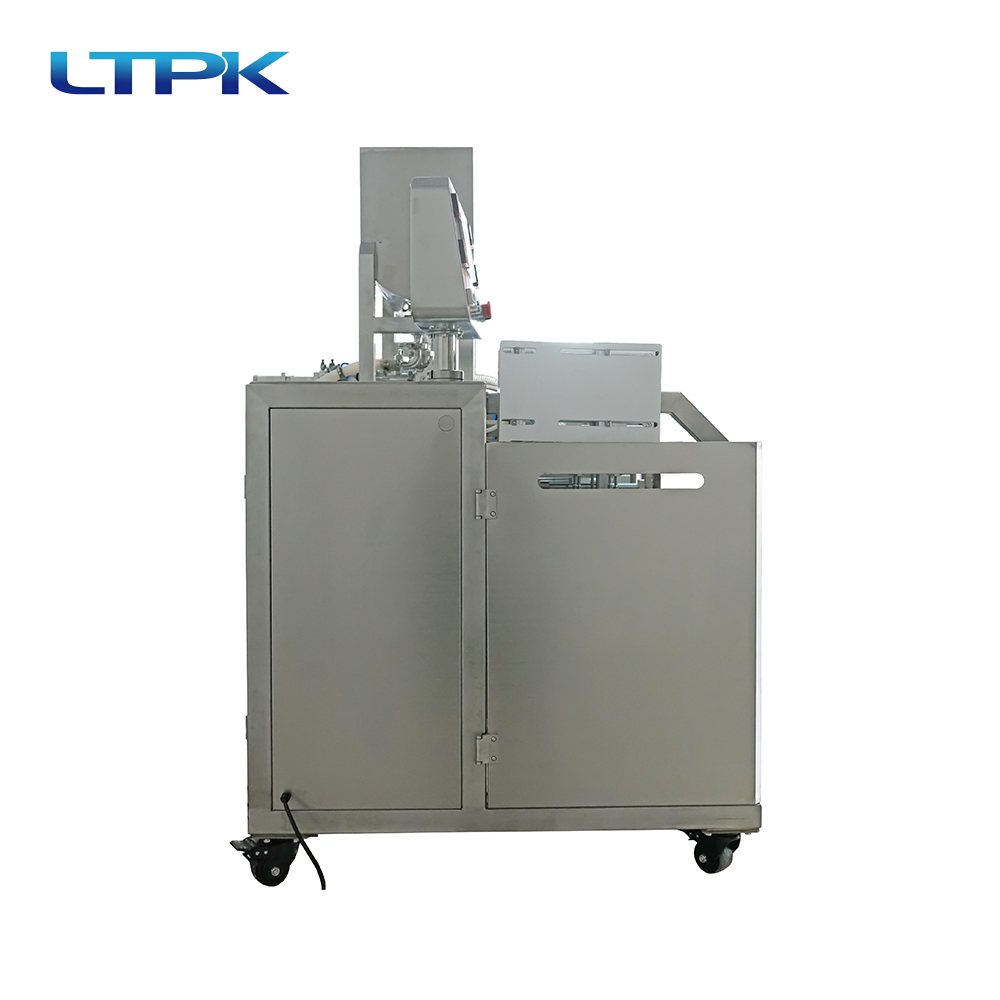

YS-SP130 Double-station bag filling and sealing machine
YS-SP130
1、The machine is suitable for the food, medicine, chemical industry, cosmetics industry of liquids , sauce of measurement packing.
2、Double-out finished products, fast speed, automatic packaging process, no manual operation. Different feeding structures can be selected according to the nature of filling materials (see Page 6, Selecting feeding structures).
3、It adopts touch screen operation, PLC control, automatic compensation of sealing temperature, precise temperature control, and beautiful sealing.
4、Packing material: PE composite film, such as: pure aluminum, aluminum plating and other prefabricated bags.
Characteristic
1、The machine is suitable for the food, medicine, chemical industry, cosmetics industry of liquids , sauce of measurement packing.
2、Double-out finished products, fast speed, automatic packaging process, no manual operation. Different feeding structures can be selected according to the nature of filling materials (see Page 6, Selecting feeding structures).
3、It adopts touch screen operation, PLC control, automatic compensation of sealing temperature, precise temperature control, and beautiful sealing.
4、Packing material: PE composite film, such as: pure aluminum, aluminum plating and other prefabricated bags.
Technical Parameters
| Measuring Scope | 10-100g |
| Bag Size(L*W) | 80-180mm |
| 55-120mm | |
| Packing Speed | 44-50bags / min |
| Dimension (L*W*H) | 2192* 1356 * 1738 mm |
| Weight | 550kg |
| Total Power | AC220V / 50 - 60Hz / 4.5kw |
| Gas source | ≥0.6Mpa |
