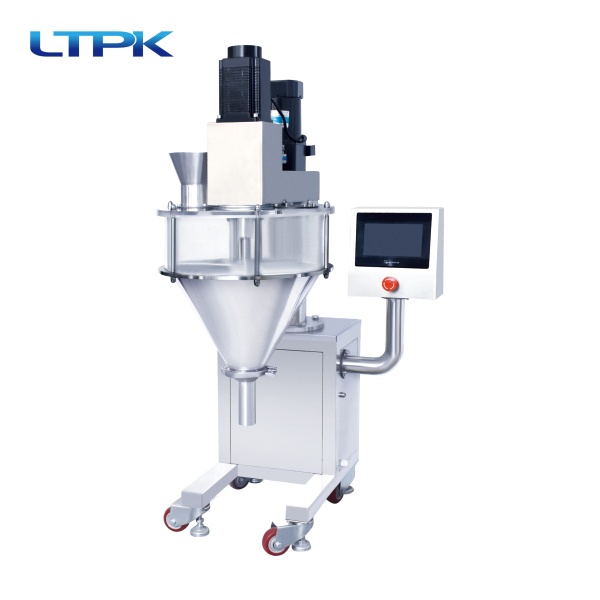

LT-700 Small Power Filling Machine
1、The equipment material for the quality of 304 stainless steel,in line with GMP requirements;
2、The device outlet with avacuum device,the external dust cover;
3、The container automatically positioning,automaticfilling materials;
4 、PLC touch thefilling volume andfilling speed can be adjusted arbitrarily with high precision；
5、Can automatically display the number of packaging,can be convenient to calculate the workload of the machine.
Performance and Features:
1、The equipment material for the quality of 304 stainless steel,in line with GMP requirements;
2、The device outlet with avacuum device,the external dust cover;
3、The container automatically positioning,automaticfilling materials;
4 、PLC touch thefilling volume andfilling speed can be adjusted arbitrarily with high precision；
5、Can automatically display the number of packaging,can be convenient to calculate the workload of the machine.
Technical parameters:
| Mobel | LT-700 |
| Voltage | AC220V 50-60Hz |
| Power | 0.92kw |
| Hopper capacity | 6L |
| Filling volume | 1-10g(Φ14mm Nozzle) 10-30g(Φ23mm Nozzle) |
| Filling accuracy | ≤10g±0.2g ≥10g±0.3g |
| Filling speed | 10-20blts/min |
| Bottle size | ≤200mm |
| Bottle mouth diamter | ≥Φ15mm |
| Dimension(LxWxH) | 500x400x1000mm |
| Weight | 60kg |
